Legacy Diver6 System

(Gen 1)

The original Diver6 system utilizes acoustic wave technology to transmit and receive data between the diver and topside unit, offering a typical range of 1,000 meters and operating reliably at depths of up to 100 meters.

The Topside Modem, equipped with multiple integrated transducers, calculates both range and bearing of each diver modem. This data is processed through Diver6 software to deliver real-time situational awareness and diver status, providing the divemaster with a comprehensive operational view.

Interested in Gen1 systems?
Contact us for availability and discounted pricing on remaining inventory.

Topside Modem

Data Rate: 140 – 15,360 bps

Range: 1.25 nm (2km)

Frequency: Band C 22 – 27 kHz

Range Accuracy: 0.3 meters

Size: 4.5” (114.3mm) x 15” (381 mm)

Weight: 12.2 lbs (5.6 kg) and 6 lbs (2.7 kg)

Diver Modem

Size: 2.4” (61 mm) x 13.1” (333.7 mm) long

Weight: 3.2 lbs. dry and 1.6 lbs. wet

Battery: 12+ hours

Frequency: C Band 22-27 kHz

Bandwidth: 5 kHz

Baud Rate: 8 to 15k bps (140bps)

Range: up to .62 miles (1000 m)

Enclosure: 316 SS and acetyl copolymer

Depth: 150 psi, 346’ (105 m)

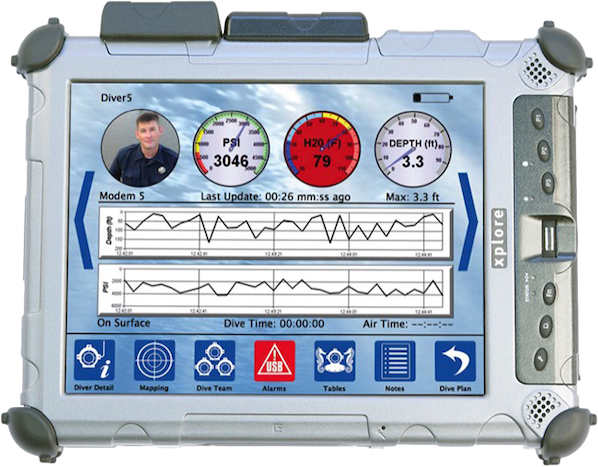

Rugged Tablet

MIL-STD 810G certified and IP67-rated

UL Certified For Hazardous Areas

Sunlight Readable Display

Tethered Stylus

Display: 10.4” XGA (1024x768)

LED-backlit display (1300 nits)

Battery: 10-cell Li-Ion battery (68.5 Whr) - Up to 8.5-hr battery life

Dimensions: 11.2” (284.4 mm) x 8.25” (209.5 mm) x 1.6” (40.7 mm) (WxHxD)

Weight: 2.4 kg
