Diving Safety Evolved

We’ve got your six

Diver6 System

(Gen 2)

The Diver6 System is engineered to withstand the harsh environmental conditions divers face every day. With an IP65 rating and compliance with MIL-STD-810G, it delivers dependable performance in even the most extreme operational settings—providing consistent, accurate data when it matters most.

Explore the system components below to learn more.

Looking for our Legacy System? Click Here!

Click an item below to view more details

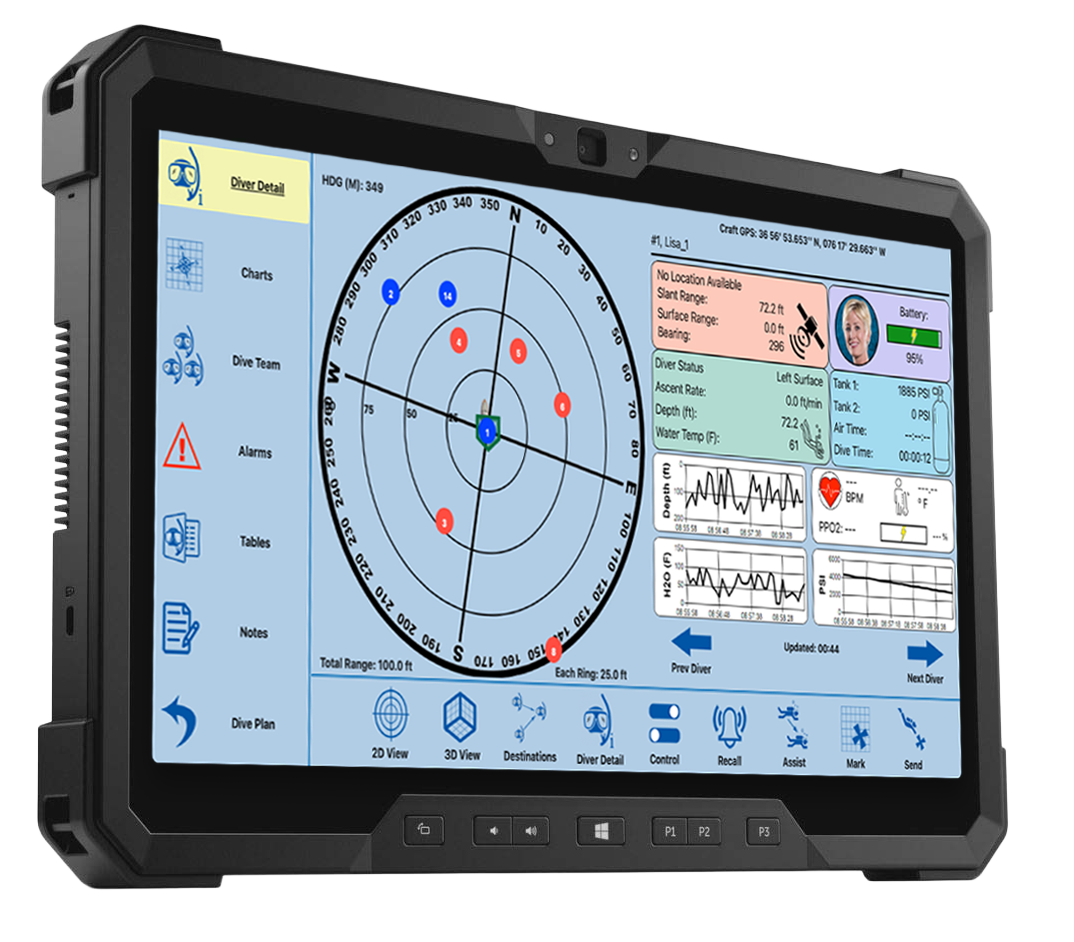

Dell Latitude Rugged Tablet – Built for Dive Operations

Diver6 Rugged Tablet

Designed to perform in the harshest environments, Dell Latitude Rugged PCs are ideal for dive operations where reliability is critical. Drop-tested from 4 feet and IP65-rated, these tablets offer maximum protection against dust, dirt, and water ingress—ensuring durability in wet, challenging conditions.

Equipped with hot-swappable dual batteries and advanced thermal management, the system maintains peak performance during extended use. Its sunlight-readable touchscreen delivers precise, dependable control, providing the divemaster with a clear, real-time view of diver activity in any lighting condition.

The tablet features built-in GPS with robust meter-level accuracy, and comes preloaded with customized ENC charts based on your operational area. Additional charts and updates can be easily added as needed.

Best of all, Diver6 is a fully self-contained system, requiring no external sensors or instrumentation—no heading, GPS, or depth devices needed to operate.

Specfications
(may change as newer tablets are offered)

Processor: 12th Gen Intel® Core™ i5-1240U, vPro® (12 MB cache, 10 cores, 12 threads, up to 4.4 GHz Turbo)

Tool-free access to battery, SSDs, SIM, Micro SD

Display: 12", FHD (1920 x 1200),1200 Nit Outdoor-Viewable, sRGB AntiGlare

Memory: 16 GB LPDDR5, 5200 MT/s (onboard)

Hard Drive: M.2 256GB PCIe NVMe Class 35 Solid State Drive

Full Microsoft® Windows® 11

Comprehensive communications suite

MIL-STD-810H tested and IP-65 rated

Battery: 2-cell (35.6 Wh) Lithium-Ion Primary Battery (x2)

Dimensions: (WxDxH) 11.65” x 7.99” x 0.94” (296 x 203 x 23.9 mm)

Weight: starting at 1.26 kg (2.78 lbs.)

On-board Dedicated u-blox NEO-M9N GPS card (Robust meter-level accuracy)

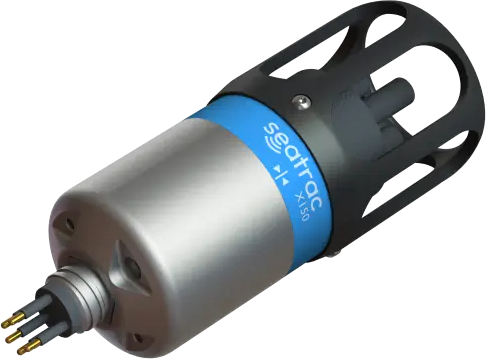

Topside Modem (X150) - Compact, Capable, and Connected

The topside modem uses a robust broadband spread spectrum signaling scheme to serve as a multi-purpose acoustic transponder beacon. It can simultaneously track up to 14 assets while supporting bi-directional data exchange. Compact and lightweight (720g / 1.59 lbs), it can be mounted on a dock or supervisor vessel for flexible deployment.

Powered by the Diver6 Battery Box, the modem connects to the rugged tablet via wired or Bluetooth communication, ensuring stable and reliable system performance.

Seatrac X150 Topside Modem

Specifications

Supply Voltage: 9-28 VDC

Operating Temp: -5°C to +40°C (23°F to 104°F)

Acoustic Range: 1km radius horizontal, 1km vertical (hemispherical)

Range Resolution: ±0.1m (dependent on VOS accuracy)

Angular Resolution: ~ ±1°

Communication: Broadband spread spectrum encoding, 24-32kHz, 100 baud. Multi-tiered Acoustic Protocol Stack

Length including connector: 160mm (6.3"), exc connector 132mm (5.2")

Diameter: 54mm (2.12") body, 59mm cage (2.32")

Weight: 720g air (1.59lbs), 530g water (1.17lbs)

Diver Modem (X110) - Integrated Communication Below the Surface

The Diver Modem consists of two components: the Diver Beacon and the Diver Control Module (DCM). The beacon handles bi-directional acoustic communication with the topside system, while the DCM provides power and DiveCAN connectivity for seamless integration with Shearwater dive computers and devices.

The beacon is mounted to the diver’s air tank, and the DCM is secured to the dive belt or another location that won’t interfere with task performance. Together, the units add less than 3 lbs. of weight in the water, maintaining diver agility and comfort.

Diver6 Control Module and X110 Modem

Specifications

Supply Voltage: 9-28 VDC

Operating Temp: -5°C to +40°C (23°F to 104°F)

Acoustic Range: 1km radius horizontal, 1km vertical (hemispherical)

Range Resolution: ±0.1m (dependent on VOS accuracy)

Angular Resolution: N/A

Removable Battery Pack with 6+ hours of charge

DiveCAN enabled interface for Shearwater integration

Beacon Length including connector: 134mm (5.3"), exc connector 106mm (4.2")

Beacon Diameter: 54mm (2.12") body, 59mm cage (2.32")

Beacon Weight: 690g air (1.52lbs), 500g water (1.1lbs)

DCM Length including connector: 187mm (7.35")

DCM Diameter: 69mm (2.73")

DCM Weight: 1089g air (2.4lbs) / 730g water (1.60lbs)

Shearwater Equipment Integration

Diver6 seamlessly integrates with Shearwater Petrel, NERD 2 dive computers, single/dual tank pressure sensors, and the wireless SWIFT transmitter. Known for their rugged design, precision, and reliability across thousands of dives, Shearwater products are trusted by divers worldwide for both recreational and professional missions.

Through this integration, Diver6 unlocks exclusive features that enhance diver safety and coordination:

RECALL – Sends a return-to-craft command from the topside. The diver receives real-time range and bearing updates to guide them back to the surface vessel.

ASSIST – Allows a divemaster to direct one diver to assist another, sharing range, bearing, and depth information.

DISTRESS – Enables a diver in need to alert the divemaster and receive bearing and range guidance back to safety.

RETURN HOME – Allows a diver to request navigation assistance back to the surface vessel.

SEND ASSIST – A diver can request support from another diver through the divemaster.

Tank Pressure Monitoring – Real-time air supply data is transmitted topside, giving divemasters greater situational awareness and control.

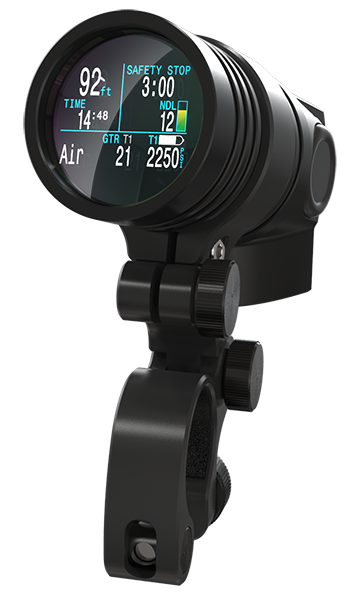

Shearwater Petrel 3

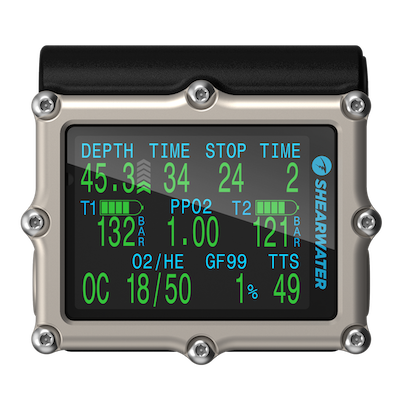

Shearwater NERD

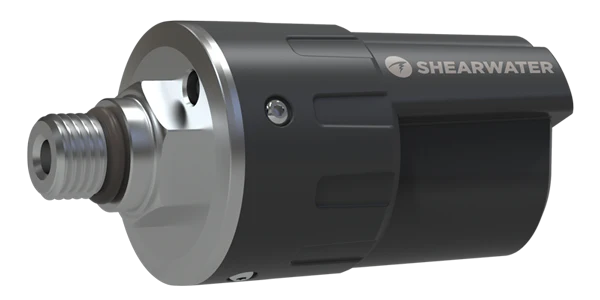

Shearwater SWIFT Transmitter

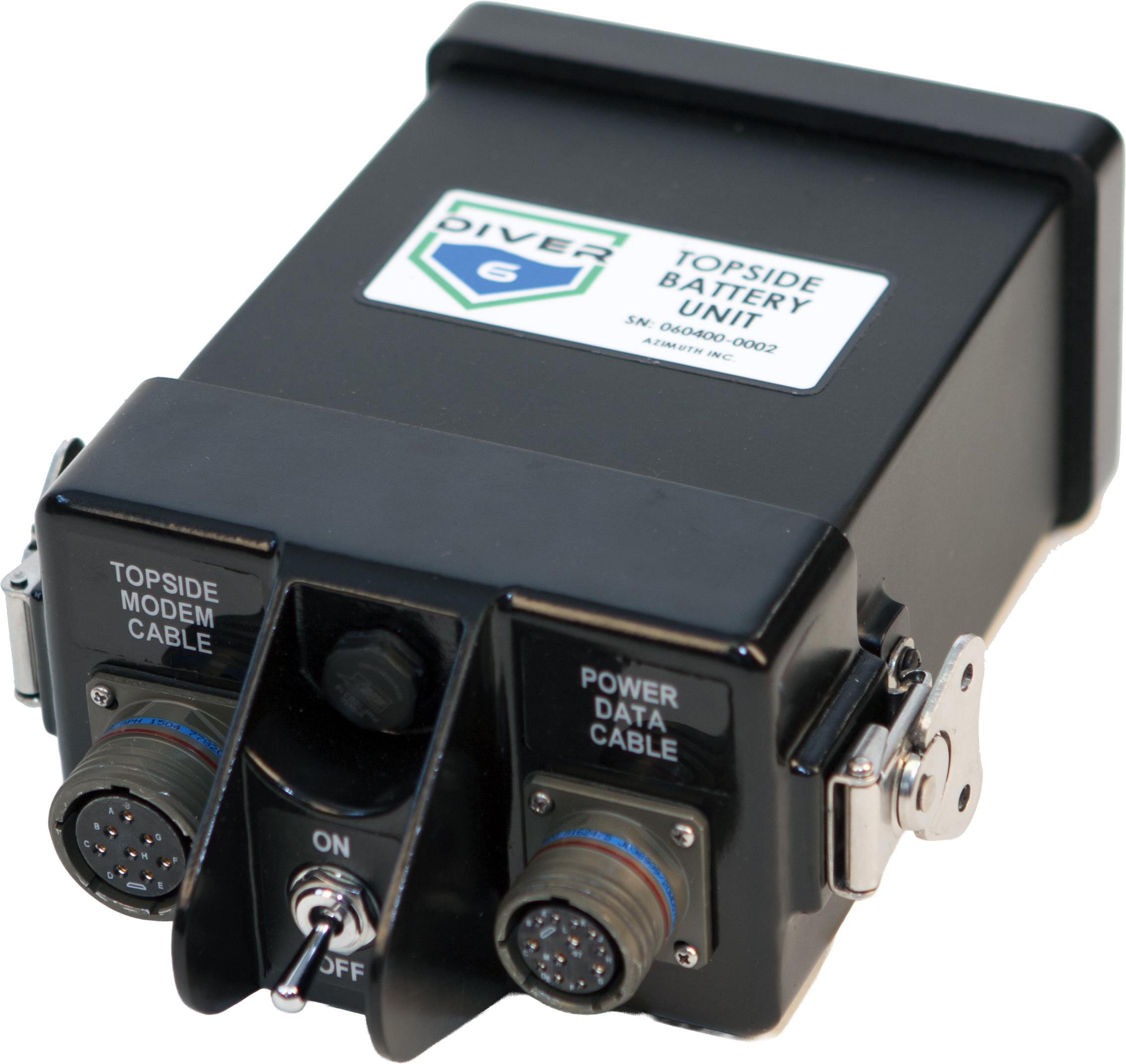

Topside Battery Unit

The Topside Battery Unit provides reliable power and data connectivity between the Topside Modem and the tablet computer. Housed in a rugged, water-resistant enclosure, the unit features a dedicated on/off switch and MIL-STD locking connectors to ensure secure, consistent power and data transmission in demanding operational environments.

Diver6 Topside Battery Unit (TBU)

Specifications

Lightweight and Portable

24V – 4.9 Amp-Hours

Nickel-Metal Hydride BB-390B/U

Transport Regulations Compliant

Reliable & Simple Operation

Bluetooth Connection to tablet

DiveCAN enabled interface for Shearwater integration
